Gruppo Aturia - Surface - Magnetic Drive Seal-Less Pumps - Centrifugal Pumps PCM, PCM-SP

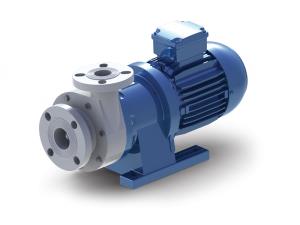

Pumps of the PCM series are single stage centrifugal magnetic drive pumps. Pump casings with heavy wall thickness, machined from solid blocks of PP and PVDF. No metallic parts in contact with the pumped liquid.
PCM and PCM-SP magnetically coupled are available with compact design, close coupled for standard, off the shelf, IEC and NEMA motors.

All pumps are equipped with high purity 99,7% Alumina Oxide shaft and thrust bearings, option Sintered Silicon Carbide. Sleeve bearings are made of PTFEC for long life and excellent chemical resistance, option Silicon Carbide. O-rings in EPDM, VITON or FEP.

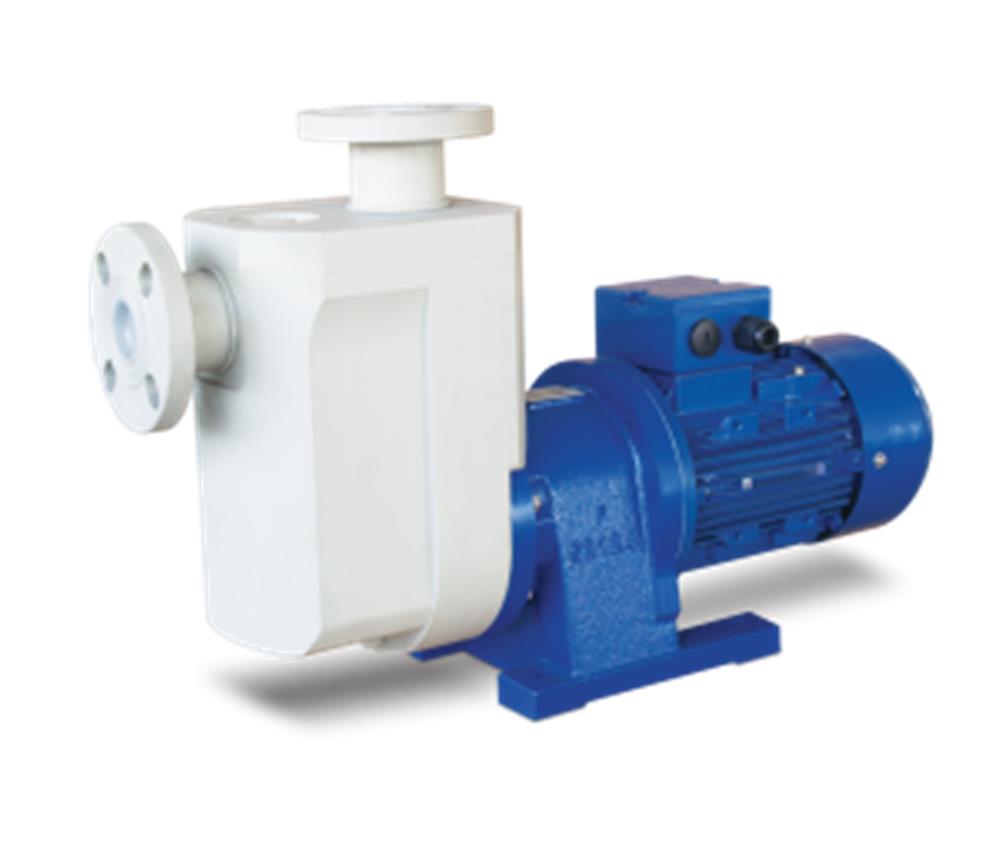

Self priming models, series PCM-SP, are capable to lift corrosive liquid up to 5 mt without the need of a foot valve and with empty suction pipe. Ideally for underground tanks transferring and truck unloading.
All pumps are manufactured in accordance with the current CE-Standard

**** Explosion proof models according to ATEX directive,
category II are also available.****
