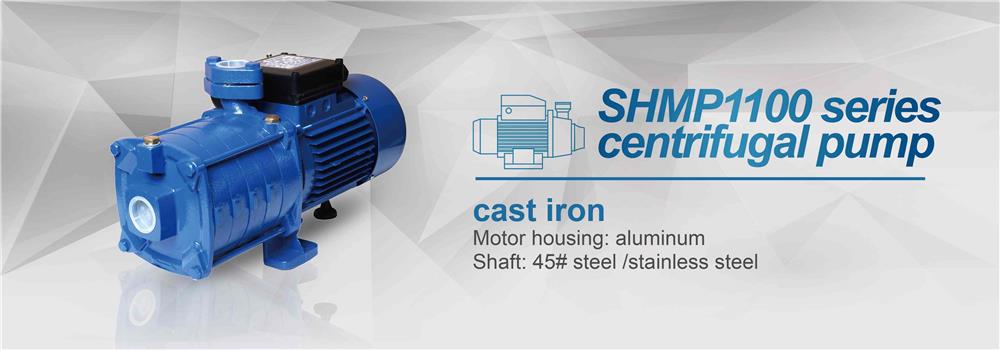

Stream - Domestic Centrifugal Pumps - SHMP1100

Applications and installation:

The SHMP series are designed to work with clean water in domestic applications, irrigation, industry, etc. the pump body is made of stainless steel, so that they are of beautiful design. At the same time, they have the advantage of low noise, easy operation and reliable performance.

Pumps should be installed in a covered area, protected against the weather.

Operating limitations:

  • Max ambient temperature up to 40 ?
  • Max fluid temperature up to 80 ?
  • Max pressure up to 10 bar

Construction features

  • Pump Body: cast iron
  • Motor Housing: aluminum
  • Shaft: 45# steel/stainless steel
  • Impeller: brass/PPO optional
  • Motor: closed, externally ventilated
  • Insulation Class: B/F
  • Protection Class: IP44/IP54
  • Duty: continuously rated
  • Mechanical Seal: ceramicsteatite/metalized carbon
