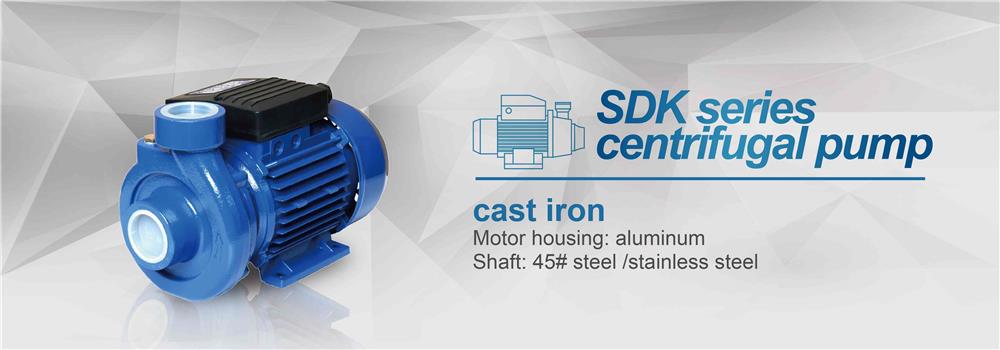

Stream - Domestic Centrifugal Pumps - SDK

Applications and installation:

The SDK series pumps are recommended for pumping clean water and chemically non-aggressive liquid. They have compact size and are extremely reliable, very simple to use, efficient and almost maintenance-free. They are suitable for boosting pressure water supplying for household, irrigation, general industrial applications, etc.

Pumps should be installed in a covered area, protected against the weather.

  • Operating limitations:
  • Max ambient temperature up to 40 ?
  • Max fluid temperature up to 80 ?
  • Max pressure up to 10bar

Construction features

  • Pump Body: cast iron
  • Motor Housing: aluminum
  • Shaft:45# steel/stainless steel
  • Impeller:brass
  • Motor:closed, externally ventilated
  • Insulation Class: B/F
  • Protection Class: IP44/IP54
  • Duty:continuously rated
  • Mechanical Seal: ceramic steatite/metalized carbon
