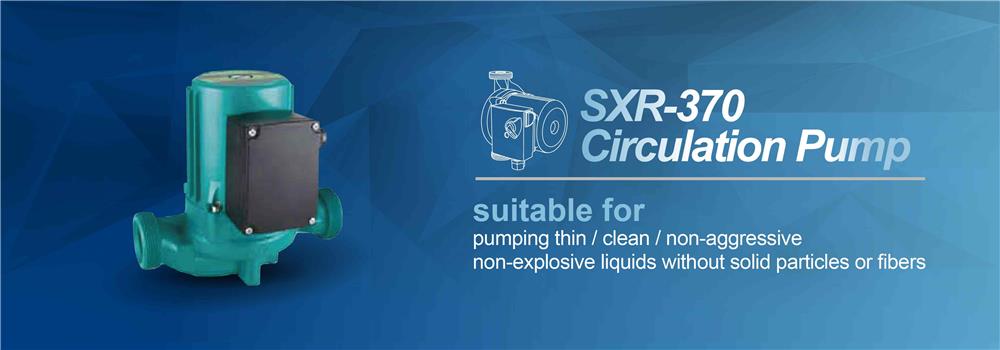

Stream - Domestic Circulation Pumps - SXR-370

Brief introduction of SXR series

The STREAM circulation pumps, series SXR, are specifically designed for heating systems. The pumps are also suitable for circulation of hot domestic water and for circulation of liquid in cooling and airconditioning systems.

Working Conditions

  • Rated voltage: 220V/50HZ  single phase AC
  • Pressure of system≤ 1.0Mpa
  • Transmitted liquid should not include solid impurity, the volume of which ratio exceeds 0.1% or the size of which is more than 0.2mm
  • The liquid temperature: 2º-110º
  • The ambient temperature:  2º-40º

Model

Power (W)

Max flow (L/min)

Max head (m)

Inlet/outlet (IN)

NW (KG)

Packing size (cm)

SXR370 400W 170 11 2" 7 26.5*21.5*13.2
