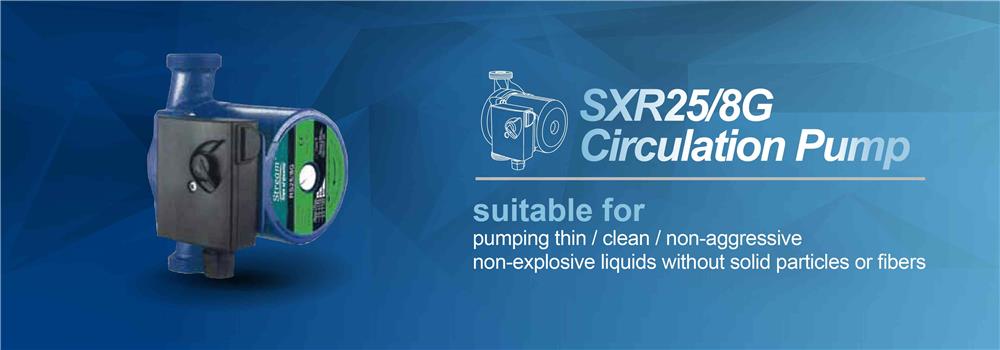

Stream - Domestic Circulation Pumps - SXR25/8G

Technical data - Suitable fluids

  • Heating water to VD12035
  • Heating water
  • Water/glycol mixtures max.mixing ratio 1:1

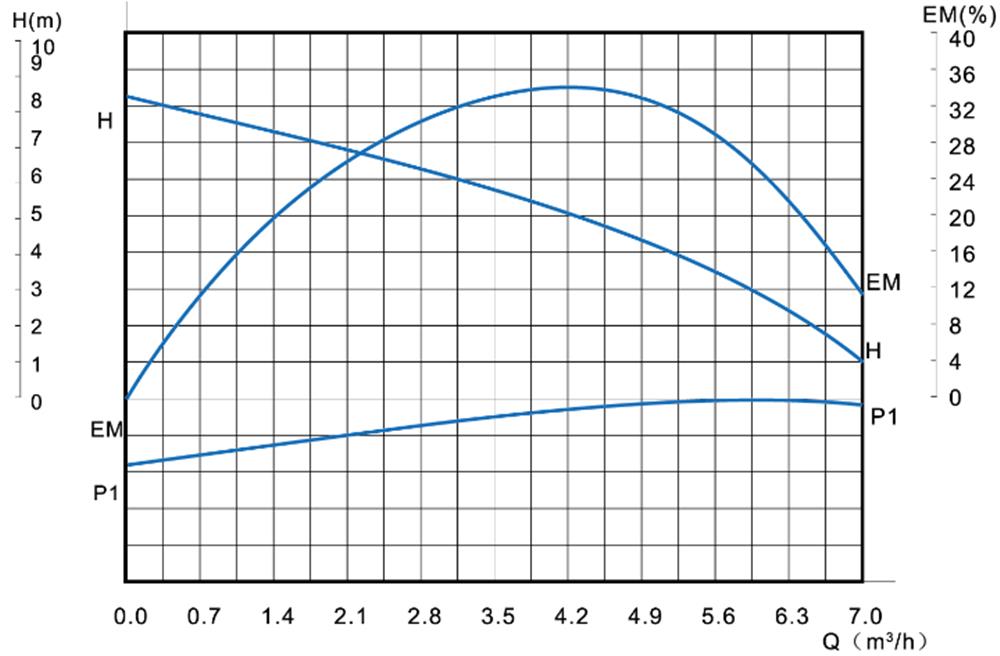

Performance

  • Fluid temperature range: -10?---+110?
  • Max.working pressure: 6 bar

Ambient temperature

  • Permissible up to 40?

Power

  • Mains power 1-230V, 50Hz

Motor

  • Degree of protection IP44
  • Insulation class F

Constructions materials

  • Pump body: cast iron
  • Impeller: PP
  • Shaft: Ceramic
  • Bearings: Ceramic

Mounting positions

  • Pump shaft in the horizontal plane

Pump equipment

  • Screwed end single head pump
  • Manual 3-speed control
  • Non-overloading single phase motor
  • Cast iron body, 180mm port-to-port
  • Cast iron body, 130mm port-to-port
