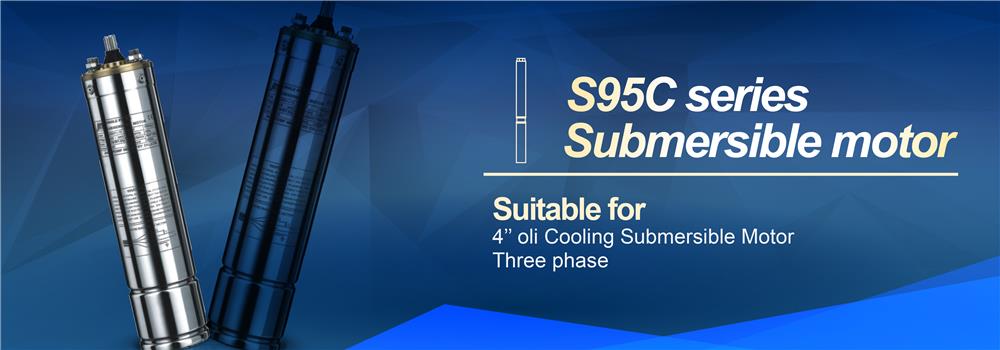

Stream - Industrial Submersible Motor - S95C

Technical Data - Motor

  • Three phase power: 1.1kw to 7.5 kw
  • Speed: 2850rpm
  • Voltage: 380v-415v~/50Hz
  • Insulation class: B
  • Protection grade: IP 68
  • Highest temperature of liquid: 35?
  • Maximum content of solid substance: 40gr/m3
  • Flange and coupling according to NEMA standard
  • Motor casing: stainless steel

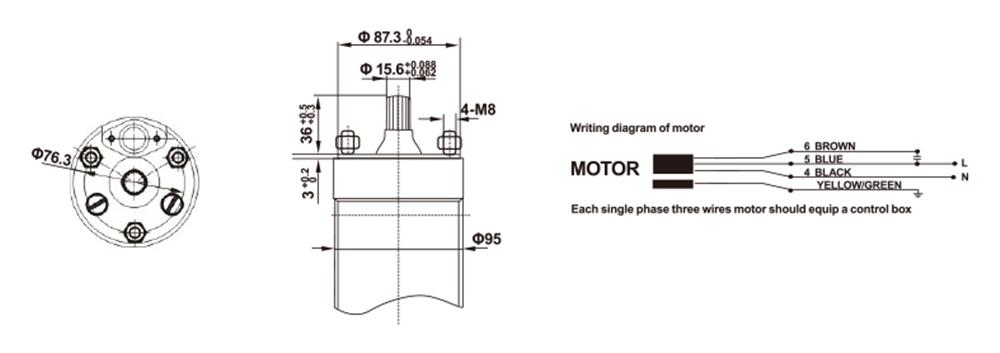

  • Maximum diameter:  Φ 95mm
  • With soundproof cover/pressure balance
  • Membrane/mechanical seal with high performance
