Stream - Industrial Multi-stage Pumps - SMS-F45
SMS,SMS-F,SMS-I Pump is a kind of multifunctional products.It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure.
- Water supply
- Industrial pressure boost
- Liquid transfer and delivery
- Water treatment
- Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers
- Power range from 0.37 kW to 45 Kw
- Flow range from 0.7 m³/h to 120 m³/h
- Head up to 309 m
- Temperature range from -20? to 180 ?
Features & Benefits
- SMS,SMS-F,SMS-I are non-self priming vertical multistage centrifugal pumps.

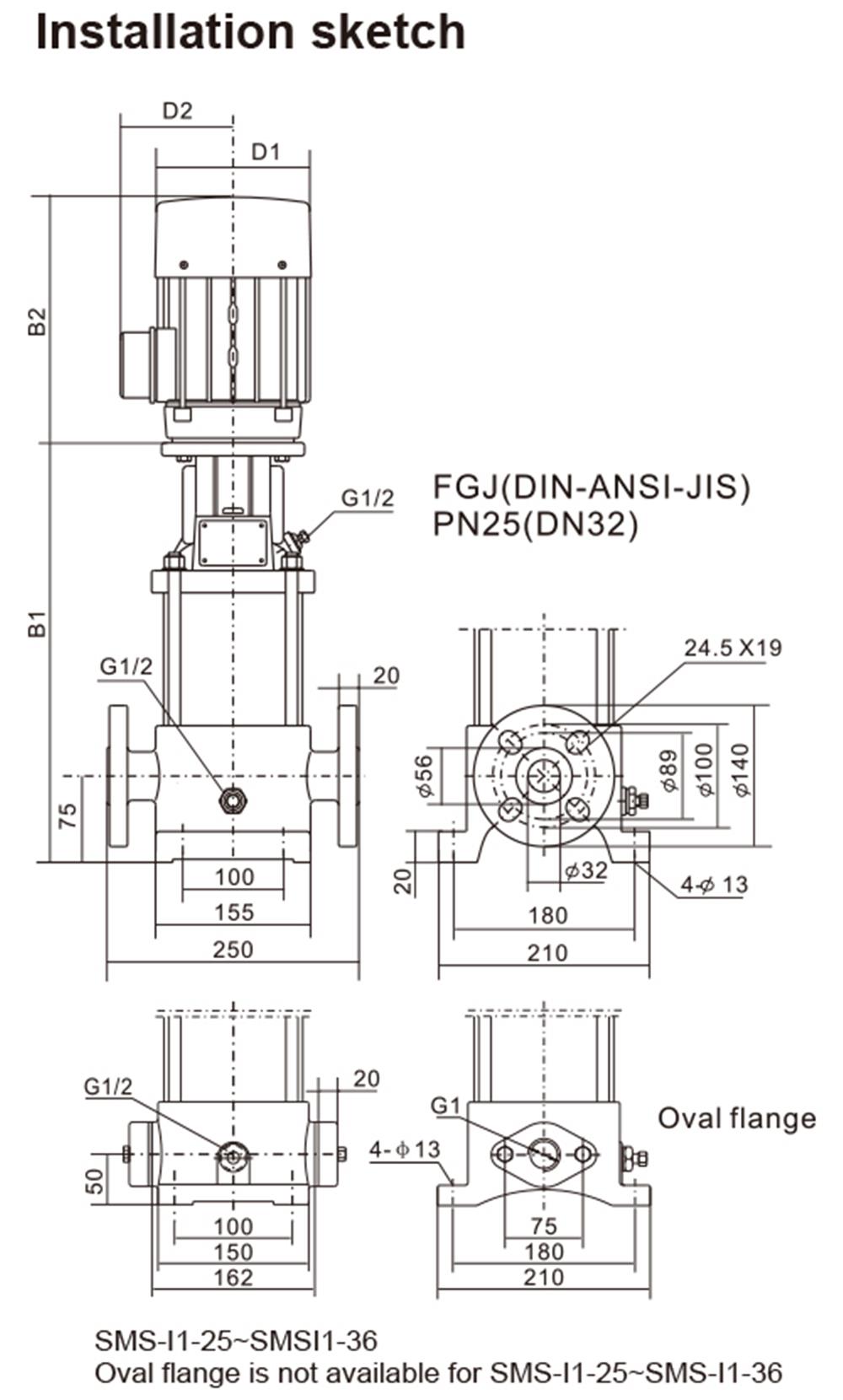

- The inlet and outlet are located at the pump bottom at the same plane - inline type.
- All pumps are equipped with a maintenance-free mechanical seal of the cartridge type.
- SMS,SMS-F,SMS-I are fitted with a totally enclosed, fan-cooled,2-pole,three-phase standard motor.
- From 0.37kW to 2.2kW, single-phase motor is also available.
- Single-phase motor has a built-in thermal overload switch.
- Three-phase motors must be connected to a motor protective circuit breaker according to local regulations.
- Nice appearance,light weight and less land area
- High efficiency and energy saving
- Nice appearance,light weight and Less land area
- Small noise at running
- Simple installation and maintenance
- Safe and durable
