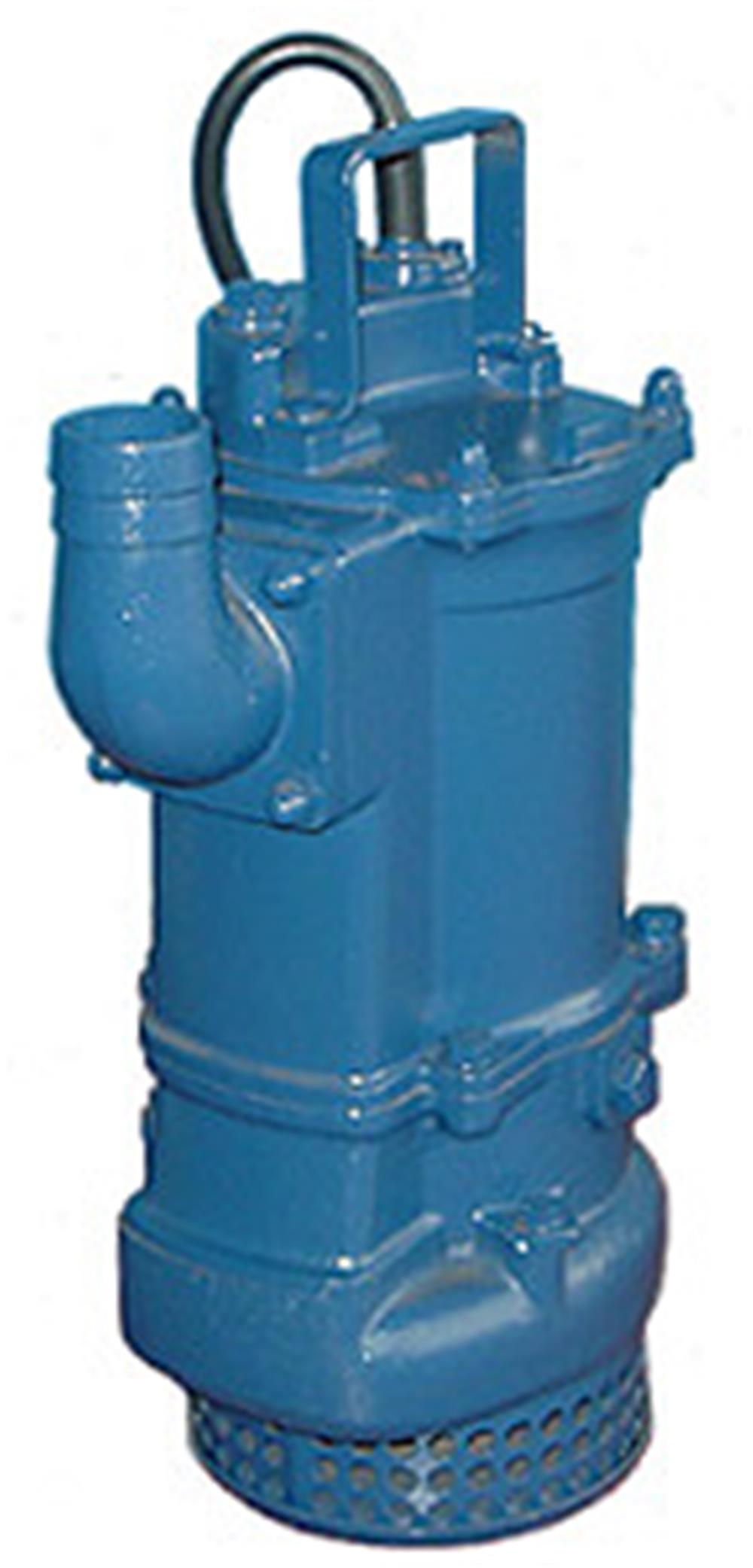

EIM - General Purpose Submersible Pumps - Model V (For General Drainage)
Solves drainage problems dealing with draining at construction work site
Features:
- Super-lightweight, changeable discharge port and wide water-way in pump casing due to semi-vortex type.
- No down time due to impeller wearing and no impeller clogging or locking.
Specifications
|
Model
|
Discharge
|
No. of Poles
|
Motor Output
|
Rated Head
|
Rated Flow
|
Power Cable
|
Weight
|
|||||
|
mm
|
inch
|
kW
|
HP
|
m
|
ft
|
m3/min
|
l/s
|
mm2×Core×Length(m)
|
kg
|
|||
|
VF-505
|
Hose Connection
|
50
|
2
|
2
|
0.4
|
1/2
|
8
|
26
|
0.12
|
2.0
|
1.25×4×10
|
13
|
|
VF-505E
|
Flange Connection
|
|||||||||||
|
VF-51
|
Hose Connection
|
2
|
0.75
|
1
|
10
|
33
|
0.18
|
3.0
|
1.25×4×10
|
13
|
||
|
VF-51E
|
Flange Connection
|
|||||||||||
|
V-52
|
Hose Connection
|
2
|
1.5
|
2
|
15
|
49
|
0.2
|
3.3
|
1.25×4×10
|
27
|
||
|
V-52E
|
Flange Connection
|
|||||||||||
|
V-82
|
Hose Connection
|
80
|
3
|
2
|
1.5
|
2
|
10
|
33
|
0.35
|
5.8
|
1.25×4×10
|
27
|
|
V-82E
|
Flange Connection
|
|||||||||||
|
V-105
|
Hose Connection
|
100
|
4
|
2
|
3.7
|
5
|
10
|
33
|
0.9
|
15.0
|
2.0×4×10
|
47
|
- A motor protector (bimettalic auto cut) is installed for motors.
- Power cable : VCT(1.25mm2), 3CT(2mm2)
