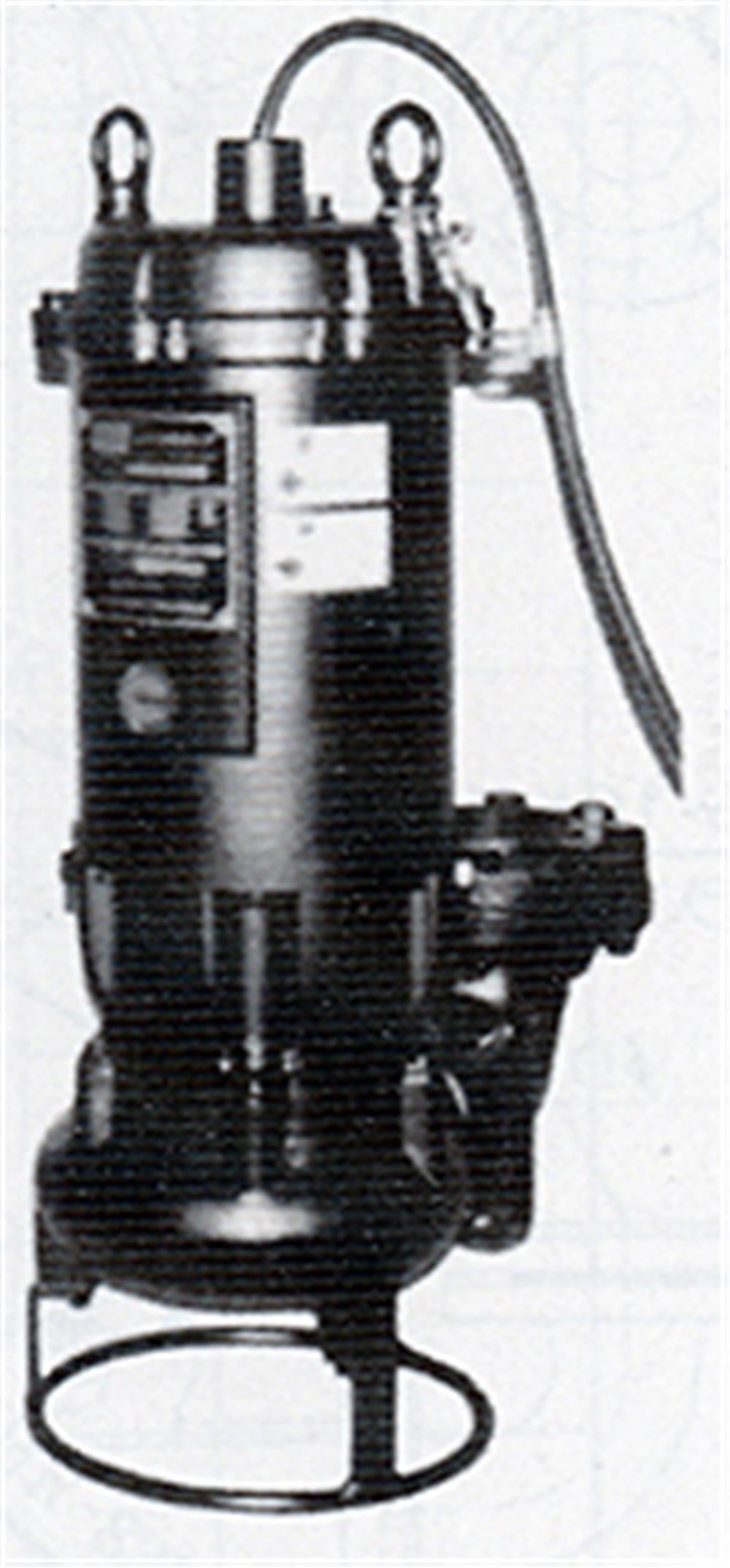

EIM - Submersible Pumps for Sumps - Model SUV: Vortex Type, 2-pole Series (For Solid Sewage)
Optimum use for manhole pumps, septic tanks, and sludge
Features:
- Even large solid and string matters can be pumped up smoothly due to its specially shaped impeller.
- Elbow assembly can also be mounted.
- Auto-level control contained type also available.(3.7kW and smaller)
Specifications
|
Model
|
Discharge
|
No. of Poles
|
Motor Output
|
Rated Head
|
Rated Flow
|
Solid Handing
|
Power Cable
|
Weight
|
|||||
|
Free Standing
|
Ebow Assembly
|
mm
|
inch
|
kW
|
HP
|
m
|
ft
|
m3/min
|
l/s
|
mm
|
mm2×Core×Length(m)
|
kg
|
|
|
SUV-505E
|
SUV-505B1
|
50/65*
|
2
|
2
|
0.5
|
1/2
|
6.1
|
0.06
|
50
|
1.25×4×10
|
26
|
||
|
SUV-51E
|
SUV-51B1
|
2
|
0.75
|
1
|
9.0
|
0.1
|
28
|
||||||
|
SUV5-82E
|
SUV5-82BH
|
80/65*
|
3
|
2
|
1.5
|
2
|
10.0
|
33
|
0.2
|
3.3
|
65
|
2.0×4×8
|
52
|
|
SUV5-83E
|
SUV5-83BH
|
2
|
2.2
|
3
|
14.5
|
0.2
|
3.3
|
55
|
|||||
|
SUV5-85E
|
SUV5-85BH
|
2
|
3.7
|
5
|
18.5
|
0.3
|
5.0
|
70
|
|||||
- A motor protector (bimettalic auto cut) is installed for motors.
- Mark * shows availability of discharge sizes, on request.
- Weight indicates the values of free-standing type.
- Power cable : 2PNCT(except 1.25mm2), VCT(1.25mm2 only)
