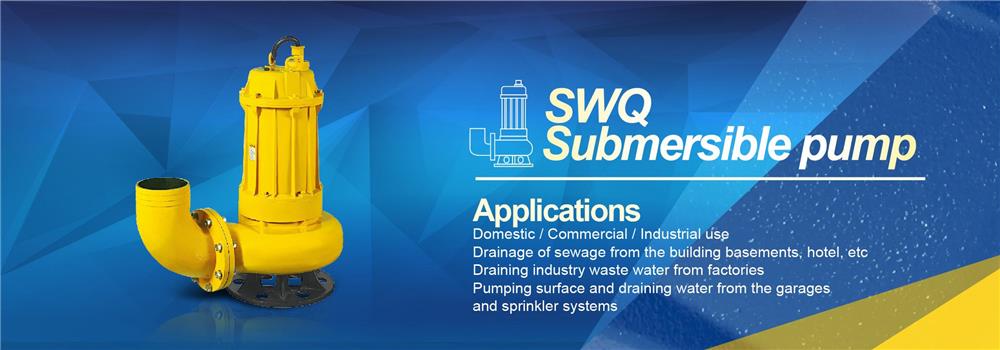

Stream - Industrial Submersible Pumps - SWQ

Application

  • Domestic/ Commercial /Industrial use
  • Drainage of sewage from the building basements,hotel,etc
  • Draining industry waste water from factories
  • Pumping surface and draining water from the garages and sprinkler systems

Operating Conditions

  • Submersible depth:5m
  • Liquid temperature up to+40°C
  • Ambient temperature up to+40°C
  • Max working pressure: 6 bar
  • Passage of suspended solid up to 35mm

Motor

  • 2-pole induction motor
  • Insulation:Class E
  • Protection:IP X8
  • Single-phase with capacitor and thermal overload protection
  • Three-phase from 0.75kW to 2.2 kW with thermal overload protection

Material

  • Pump body: Cast iron
  • Motor bracket: Cast iron
  • Impeller: Cast iron
  • Motor shaft:SS420
  • Mechanical seal:Ceramic-Graphite,Silicon Carbide-Carbide alloy
  • Copper winding
