Stream - Irrigation Deep Well Pumps - 3SQ

Application

Series 3SQ electric submersible mulistage pumps for raising clean water fromwells, primary water supplying tanks and reserviors. Series 3SQ are in radial floating impellers ideals for lifting clean and clear water in wells, domestic,civil and industrial applications, including water supply, irrigation, wash down systems and pressure boosting.

Operating Conditions

  • Water temprature:from 1°C to 35°C
  • Maxumum permissible content of suspended sand:100 g/m³
  • Maximum starts perhour:30 at regular intervals
  • Continuous or intermittent duty.
  • Power range from 0.25kW to 1.1kW 50Hz

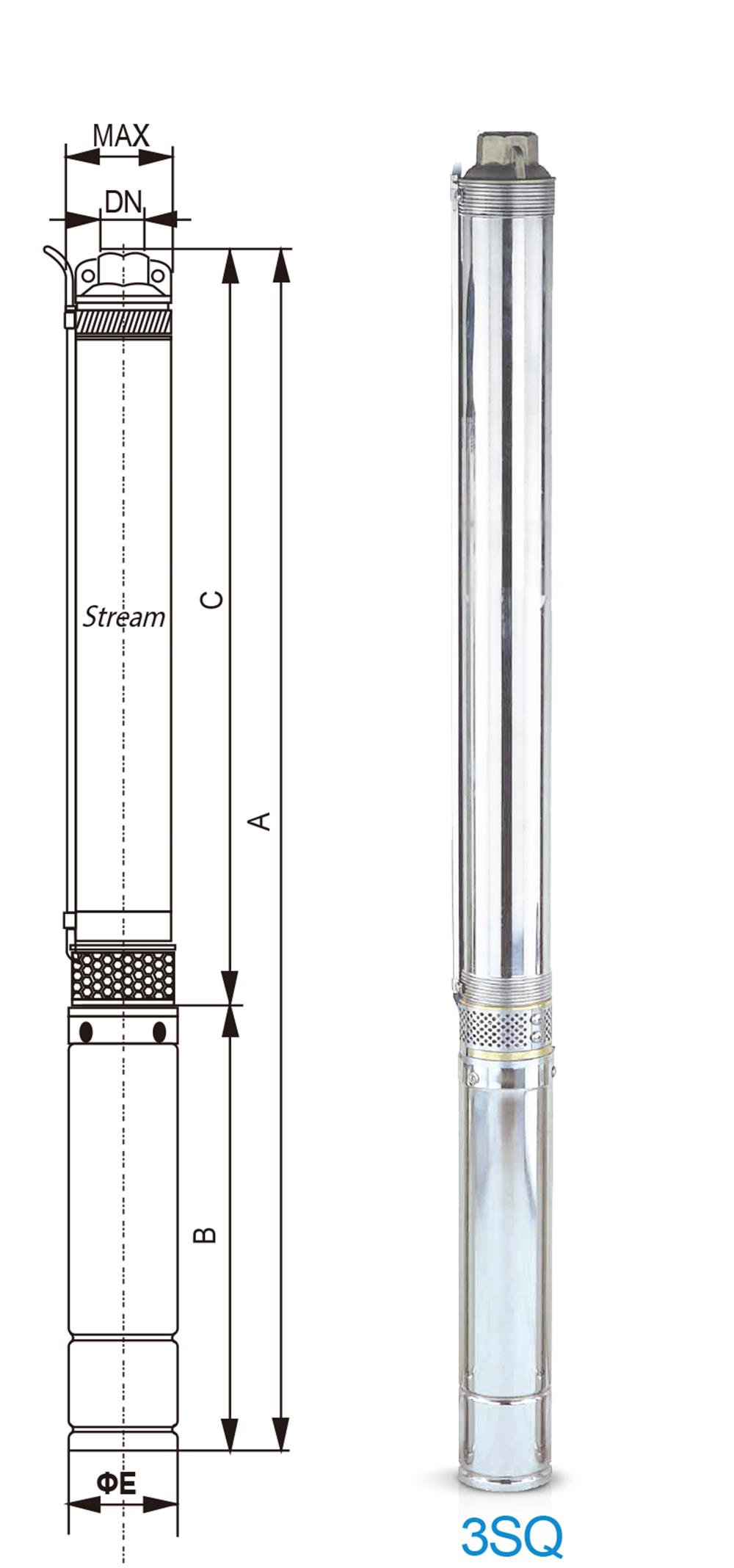

Construction Details

  • Delivery door copper
  • Suction support copper
  • Check valve plastic( POM)
  • Valve support plastic( POM)
  • Shaft support plastic( POM)
  • Impeller plastic( POM)
  • Diffuser plastic( POM)
  • Valve seal Nitrile rubber(NBR)
  • Anti-wear washer Nitrile rubber(NBR)
  • Pump bearing Nitrile rubber(NBR)
  • Pump body AISI 304
  • Cable cover AISI 304
  • Filter AISI 304
  • Shaft AISI 304
  • Shaft coupling AISI 304
  • Bushing AISI 304
